e-Sil 400 Series

Conductive Silver-Glass Silicone Rubber

Download as PDF
e-Sil 400 series is composed of a silicone elastomer filled with silver plated glass particles exhibiting high electrical conductivity, providing highly effective shielding and offering excellent moisture sealing.
The e-Sil 461 and e-Sil 451 are high performance materials, in high and low hardness, which by far exceeds the requirements of MIL-G-83528/ M. The e-Sil 466 and e-Sil 456 are commercial grades, in high and low hardness, providing very good cost/performance engineering solutions.
Excellent compression set is achieved through unique process to enable mechanical sealing properties matched to non-conductive silicones. Enhanced electrical conductivity and shielding properties and good resistance to aging provides better performance in existing uses and gives endless freedom in designing new complicated three dimensional shapes.
Good tensile and tear strength.  e-sil 100
Silver/Glass filler minimize the risk for galvanic corrosion.
Excellent compression set to maintain sealing force over very long period of time - nearly half the value required by Mil-G-83528.
Effective over a wide range of temperatures.
Good sealing under moderate closing force.
Improved mechanical properties enables molding of complicated geometry and delicate parts.
The material provides cost effective production solutions.
Available in sheets in every thickness and custom die-cut parts.

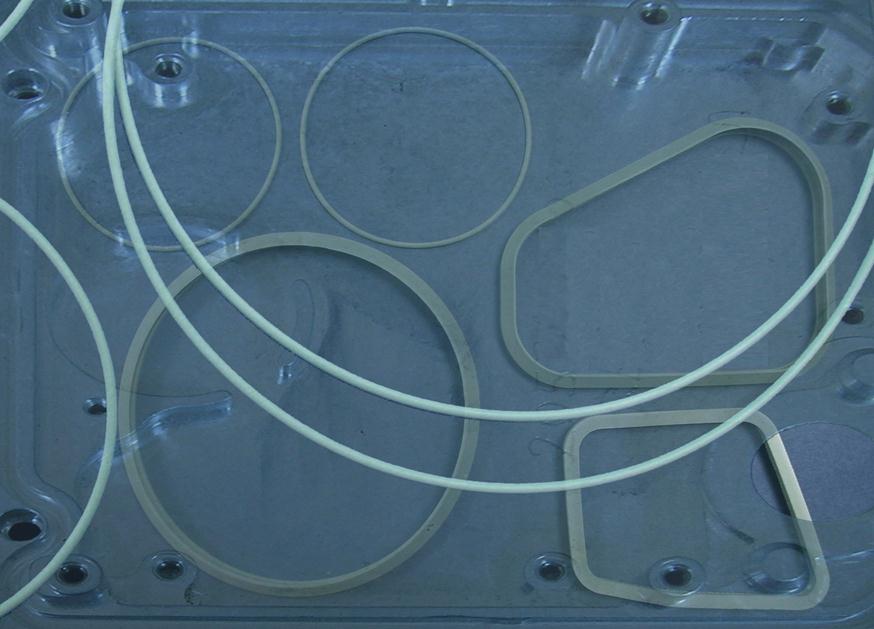

Available as custom molded parts.
Physical Properties Typical Values Test Method
Type  High Performance  Commercial
Grade Name  e-Sil 461 e-Sil 451 e-Sil 466 e-Sil456
Elastomer binder Silicone
Conductive filler Silver Glass Plated Particles
Color Beige
Operational Temperature, °C (-55) to (+160)
Hardness, Shore A, ± 7  65 55  65  55  ASTM D-2240
Tensile Strength, Mpa (psi), Min  1.7 (250) 1.5 (220)  2.0 (290)  230 (1.6)  ASTM D-412
Elongation, %, Min 250 510 260 450   ASTM D-412
Tear Strength kN/m (lb/in) , Min 9.6 (55) 8.7 (50) 11.3 (65) (10.8) 62  ASTM D-624
Specific Gravity, gr/cm3, ±0.25 1.87 1.80 1.84 1.80   ASTM D-792
Compression Set, 70hr@100°C, Max 20% 21% 25% 25%  ASTM D-395
Volume Resistivity, Ω-cm 0.006 0.006 0.015 0.015 Mil-DTL-83528
Shielding Effectivness
H-Field, 200 kHz, db 50 50 50 50
E-Field, 100 MHz-10GHz, db 80-100 80-100 80-100 80-100
