e-Sil 500 Series

Conductive Silver-Aluminum Silicone

 Download as PDF

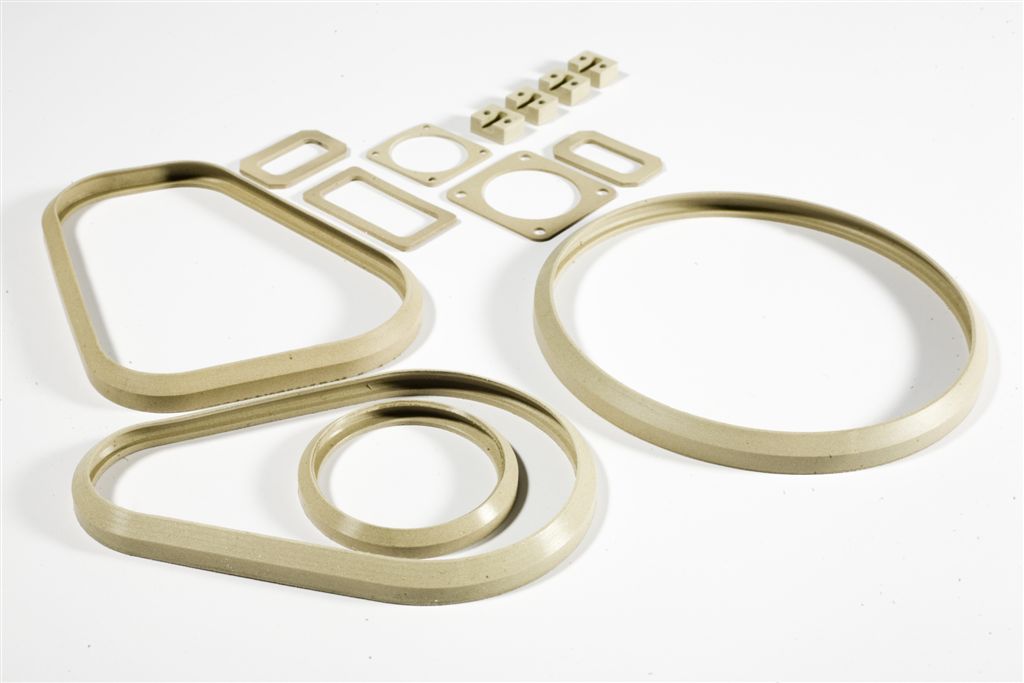

e-Sil 500 is a silicone elastomer filled with silver plated aluminum particles exhibiting high electrical conductivity, providing highly effective shielding and offering excellent moisture sealing. e-Sil 500 has physical properties which by far exceeds the requirements of MIL-G-83528/ Type B. The combination of these properties together with enhanced electrical conductivity, low compression set and generally good resistance to aging provides better performance in existing uses and gives endless freedom in designing new complicated three dimensional shapes.

Excellent tensile and tear strength – nearly twice that required by MIL-G-83528.  e-sil 100
Silver/Aluminum filler minimizes the risk for galvanic corrosion.
Effective over a wide range of temperatures.
Good sealing under moderate closing force.
Superior tensile strength enables molding complicated geometry and delicate parts.
Excellent compression set to maintain sealing force over very long period of time.
Chemical resistance for process cleaning agents.
Available in sheets in every thickness and custom die-cut parts.
Available also as custom molded to any shape.


Physical Properties Typical Values Test Method
Elastomer binder Silicone
Conductive filler Silver-plated aluminum particles
Color Beige
Operational Temperature, °C (-60) to (+160)
Hardness, Shore A 70 ASTM D-2240
Tensile Strength, psi (Mpa) 250 (1.75) ASTM D-412
Elongation, % 180 ASTM D-412
Tear Strength lb/in (kN/m) 40 (7.0) ASTM D-624
Specific Gravity, gr/cm3 2.0 ASTM D-792
Compression Set, 70hr @ 100°C 25% ASTM D-395
Volume Resistivity, Ω-cm 0.004 Mil-DTL-83528
Shielding Effectiveness
H-Field, 100 kHz, db 60
E-Field, 10 MHz-10GHz, db 100


NOTICE: The information contained herein is true to the best of our knowledge. However, since varied condition of potential use are beyond our control, users should make their own tests and evaluation to determine the suitability of our products in any specific situation and use. These products are sold without warranty, either expressed or implied, of fitness for a particular purpose or otherwise, except to the extent otherwise stated on Alvas quotation, order confirmation or invoice. We disclaim any liability incurred in connection with the use of information contained herein, or otherwise. All risks of such are assumed by the user.
